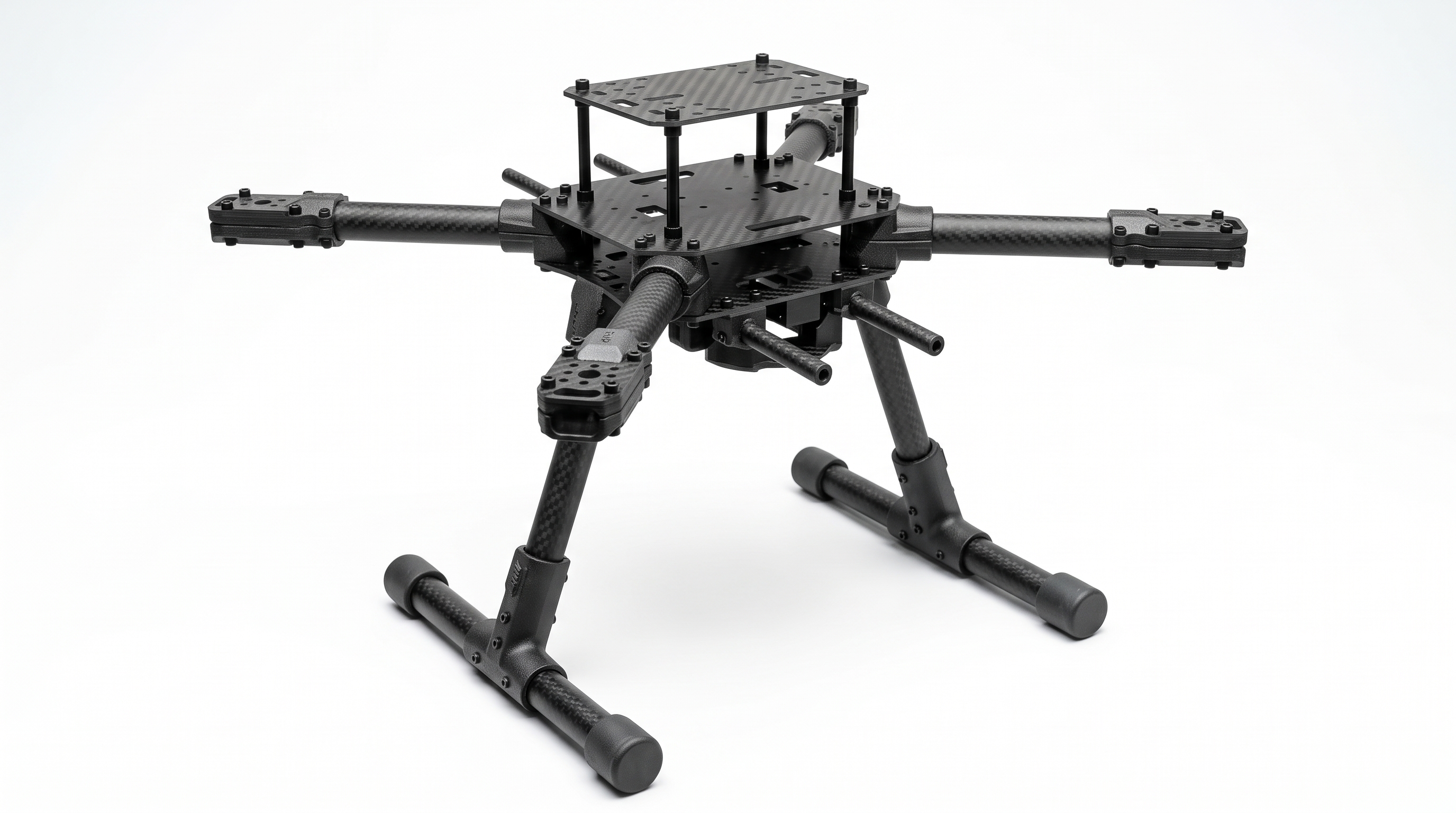

Development-class quadcopter
Q500
A 500 mm carbon-fiber X-frame for autonomy research and development — built to be taken apart, and to hold alignment through repeated teardown and reassembly.
$500
SPECIFICATIONS
Airframe
- Configuration
- Quad · X-frame
- Wheelbase
- 500 mm
- Assembled Dimensions
- 410 × 410 × 300 mm
- Frame Weight
- 920 g assembled
- Materials
- Carbon Fiber · PA12-CF
- Top / Bottom Plate
- 2 mm / 1.5 mm · 3K carbon
- Arms
- 16 mm OD carbon tube
- Motor Mount Patterns
- 16 · 19 · 16×19 · 25 mm BCD
- Electronics Mounting
- 30.5 mm · 45 mm
- Companion Compute
- Raspberry Pi · Jetson Orin Nano
- Prop Clearance
- up to 12"
In the Box & Origin
- Includes
- Carbon plates & tubes · standoffs · screws and nuts
- Tools Included
- 5.5 mm nut driver · 2.5 mm hex driver
- Assembly Time
- About an hour
- Part Number
- HPR-Q500
- Source Files
- STEP · drawings · BOM on Gitbook.io
- Origin
- Designed & manufactured in the USA
